Geotechnical

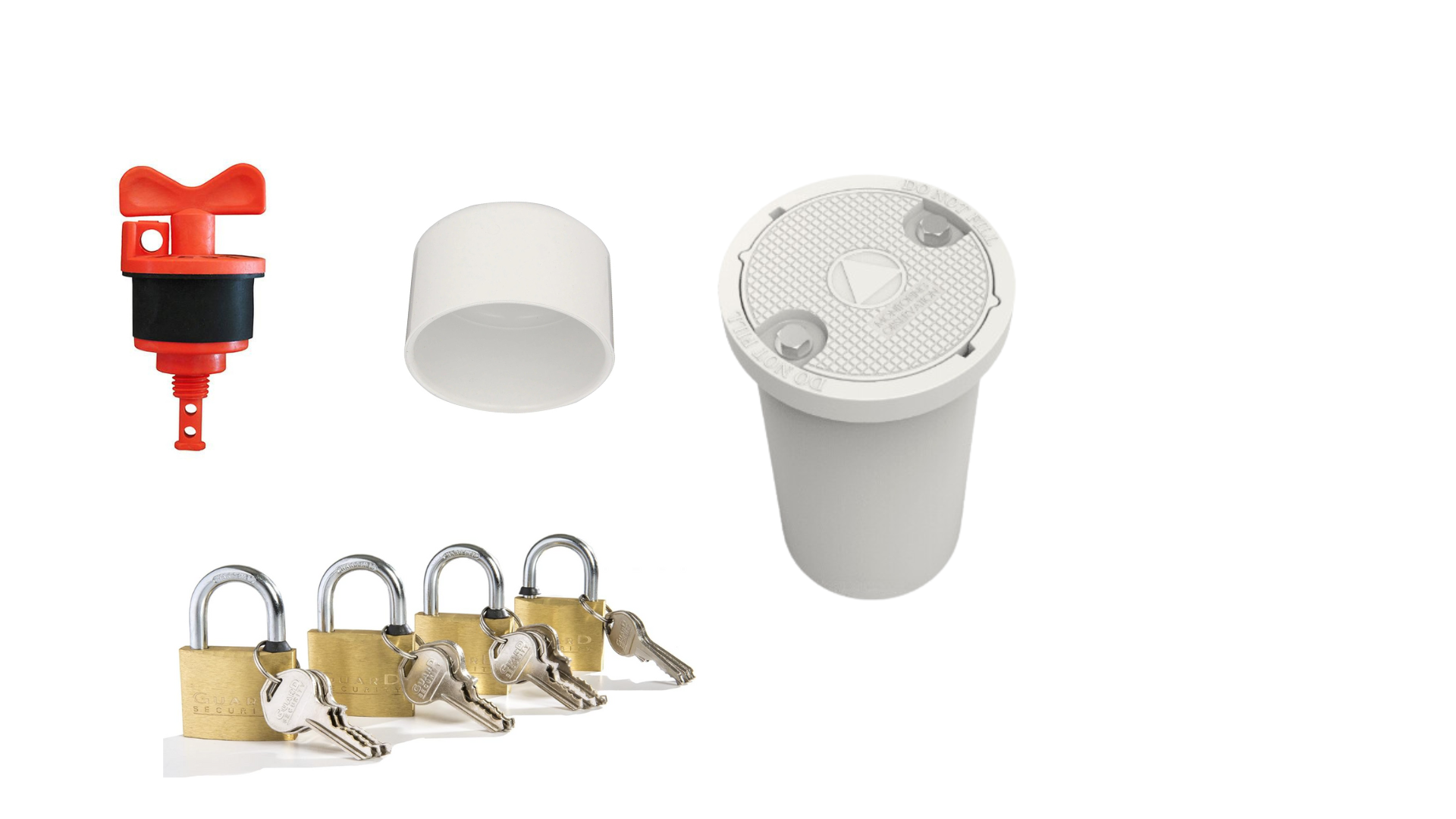

Monitoring Well Accessories:

We carry stock on a variety of accessories for monitoring wells such as:

•     PVC slip caps
•     Locking well caps (J-plugs)
•     Keyed-alike well locks
•     Flushmounts

Standpoint Piezometers:

The Solinst Model 615 Stainless-Steel Drive-Point piezometers are designed as an affordable method to monitor shallow groundwater and soil vapor in suitable conditions.

The Drive-Points attach to inexpensive 3/4" (20 mm) NPT stainless steel drive pipe and designed for single use installations. The Drive-Point Piezometers are commonly installed as permanent well points, but can also be used for temporary, short term monitoring applications. The Drive-Points can be installed via direct-push equipment, or manually via slide hammer assembly.

The Solinst Drive-Points are available in three configurations:

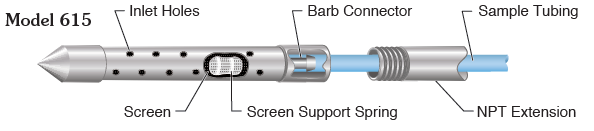

Model 615

• 3/4" diameter drive-point available in 6" or 1ft lengths
• Includes barb fitting for 5/8" tubing
• Ideal for sampling via peristaltic pump

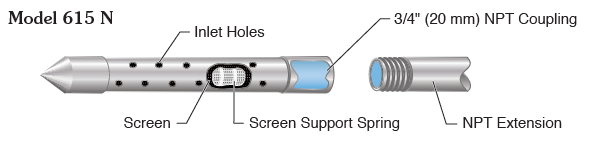

Model 615N

• 3/4" diameter drive-point available in 6" and 1ft lengths
• Open channel configuration
• Ideal for monitoring water level and sampling

Model 615C

• 3/4" diameter drive-point available in 6" and 1ft lengths
• Includes compression fitting for 1/4" tubing
• Ideal for soil & sub-slab vapour monitoring
