Hydrolift

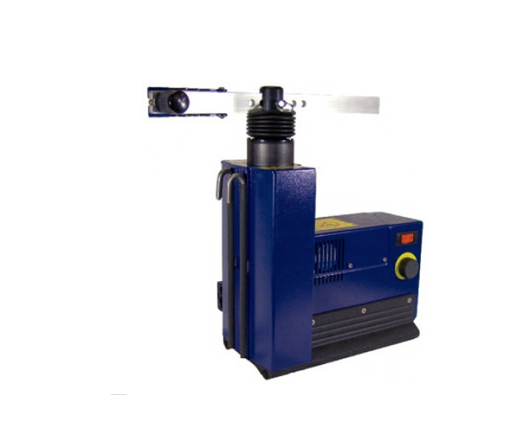

Waterra HydroLift Inertial Pump
The Waterra Hydrolift-2 is a portable, electrically operated device that is used to automate the operation of the Waterra Inertial Pump (foot valve). The hydrolift is ideally suited for purging & developing groundwater wells especially when multiple wells or high volumes are anticipated.
Powered by a 3/4 horsepower electric motor (available in either 110 volts or 220 volts), the Hydrolift-2 can generate a 4-inch stroke at up to 200 cycles per minute. This actuator is optimized to operate with the Standard Flow and Low Flow Systems up to its maximum effective depth and will operate with the High Flow System up to a depth of 150 feet. The Hydrolift-2 weighs only 35 pounds (17.25 kg) and requires an electrical power supply of at least 1000 watts.
With the MAXIM rental of the HydroLift, we can supply our clients with a portable generator/inverter.
- Portable, field rugged design
- Variable flow rate: 0 to 180 cycles per minute
- Maximum lift 200 ft
- Powered by 110V connection via direct plug-in or field generator
Companion accessory:
Field Generator (Honda EU2000)
Resources:
Download Brochure Maxim Quick Start GuideGrundfos Rediflo SS Monsoon Submersible Pump
