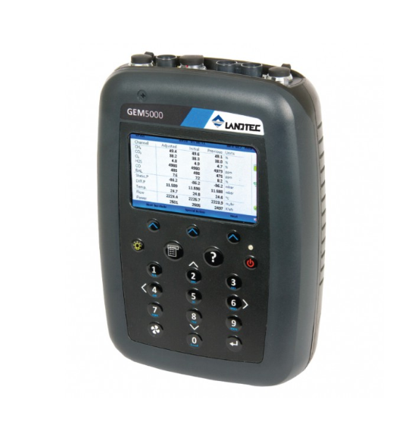

GEM 5000

Portable Landfill Gas Analyzer

The GEM 5000 is the next-generation portable gas detection instrument designed for analyzing and recording Landfill Gas (LFG) composition and calculating flow.

• Methane (CH4): range 0 to 100% (vol)
• Carbon Dioxide (CO2): range 0 to 60% (vol)
• Oxygen (O2): range from 0 to 25%
• Carbon Monoxide (CO): range from 0 to 2000 ppm
• Hydrogen Sulfide (H₂S): range from 0 to 500 ppm

• Differential pressure: range 0 to 10" water column equivalent
• Static pressure: range 0 to 100" water column equivalent

• User-friendly and easy to calibrate
• Field rugged, portable design
• Intrinsically safe certified
• Battery life = 8 hours (with pump activated)

Resources:

 GEM 5000 Calibration tutorial
